    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H

    Ask Lasest Price
    Brand Name : NOBO
    Model Number : NOBO-ZD-100S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 2 Set/Sets per Month
    Delivery Time : 15-45 work days
    • Product Details
    • Company Profile

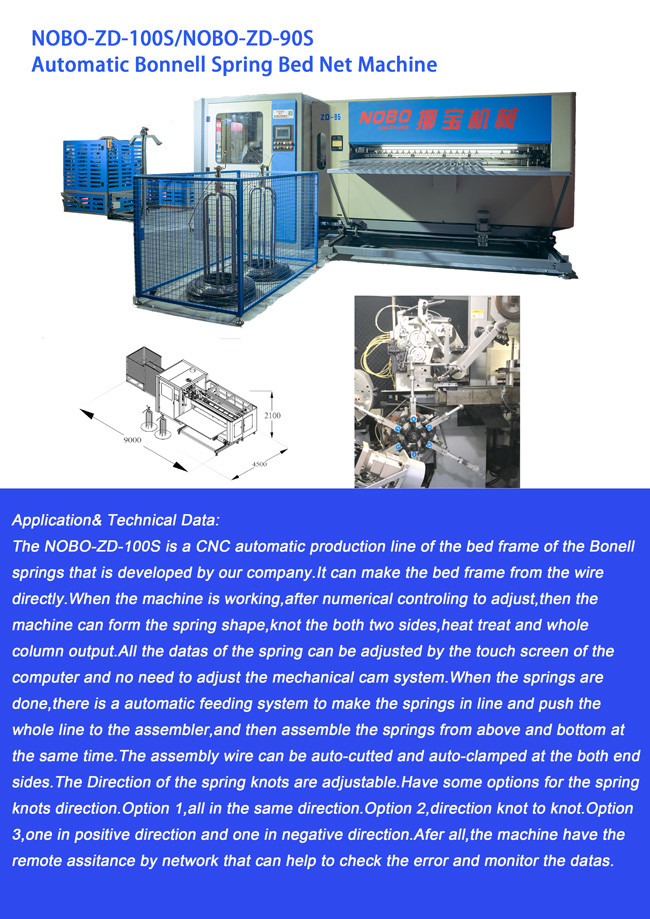

    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H

    Automatic Mattress Bonnell Spring Production Equipment Capacity 60-90 Sheets 8 H


    Technical data:
    1. Spring type:Bonell
    2. Working principle:EtherCAT Servo control
    3. Spring Capacity:90－100 Springs/min
    4. Capacity:60-90 Sheets/8 hours(1800MM*2000mm)
    5. Max width:2m
    6. Spring end ring diameter:65mm-90mm
    7. Spring wire diameter:1.9-2.4mm
    8. Assembly wire diameter:1.3-1.6mm
    9. Spring Height: 80-200mm(other size can be customized)
    10. Convolutions:4-7 turns
    11. Total power:Approx.35 KVA
    12. Weight:Approx:5500KG
    13. Power Requirement:3 phase 380V/50HZ

    14. Product alias:Automatic Mattress Bonnell Spring Production Equipment

    15. Product function or the finished product of production:Automatic Mattress Bonnell Spring Production

    Technical data:

    Work Efficiency:

    60-90 units/8 hours

    Maximum width of the bed nets:

    2000mm (option2000mm)

    Adaption bed nets high:

    80mm-180mm

    Spring wire diameter:

    2.0-2.4mm

    String of spring steel wire diameter:

    1.3mm-1.6mm

    The total electric power:

    20kw

    Weight of machines:

    9000kgs

    Electrical source:

    3 phase 380V/50HZ

    Figure size:

    length 5000 x width 3200 x high 2200mm


    Applies to spring-caliber:

    58 Fixture Series 55-56mm(1.8 meters29 rows of springs)


    60Fixture Series 60-65mm(1.8 meters27 rows of springs)

    68 Fixture Series 65-70mm(1.8 meters24rows of springs)

    78 Fixture Series 65-73mm(1.8 meters22rows of springs)

    88 Fixture Series75-82mm(1.8 meters19rows of springs)

    98 Fixture Series 82-90mm(1.8 meters18rows of springs)

    Product alias

    Automatic Mattress Bonnell Spring Production Equipment

    Product function or the finished product of production

    Automatic Mattress Bonnell Spring Production

    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 HAutomatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H

    NOBO(mattress) machinery co.,ltd


    Company Profile

    NOBO(mattress) machinery co.,ltd, was founded in 2007, at the beginning of the establishment is a

    professional commitment to mattress machinery research and development, design, manufacturing,

    sales and service of high-tech enterprises.

    For many years the development of the NOBO mattress machinery company has become a

    "mattress equipment" industry perfect production chain and sales service system of professional

    manufacturers, the company has excellent sales team and technology development team, Listen

    to the voice of the customer ,for customer service and customer Creating value is our eternal pursuit.

    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H


    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 HAutomatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H


    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 HAutomatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H


    Main business:
    Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

    mattress spring making machine , Tape edge machine , Packing machine


    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 HAutomatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H


    Ce certificate: Spring Makiing Machine & String Spring Machine

    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 HAutomatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H


    Package&Shipping:

    You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

    of your chosen port anywhere in the world timely. All of our produrts are well packed to ensure the safety

    of the products.


    Packaging

    Size

    (L) * (W) * (D)mm

    Weight

    *kg

    Packaging Details

    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 HAutomatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H


    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H


    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.


    Automatic Mattress Bonnell Spring Machine Capacity 60 - 90 Sheets / 8 H


    FAQ:

    1. who are we?

    We are based in Guangdong, China, start from 2013,sell to Northern Europe(10.00%),Eastern Asia(10.00%),

    Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),

    North America(10.00%),South Asia(5.00%),Southern Europe(5.00%),Western Europe(5.00%),Central

    America(5.00%). There are total about 51-100 people in our office.

    2. how can we guarantee quality?

    Always a pre-production sample before mass production;

    Always final Inspection before shipment;

    3.what can you buy from us?

    Automatic bunch of spring machine,Bonnell spring coiling machine,Mattress Border Frame Wire Bending,

    Automatic Coiler Machine,Automatic side seamer of the bed cushion

    4. why should you buy from us not from other suppliers?

    We have 7 years production experience for mattress machine. In order to meet the market demand customer

    need in accordance with special requirements of custom-made mattress production facilities.

    5. what services can we provide?

    Accepted Delivery Terms: FOB；

    Accepted Payment Currency:USD;

    Accepted Payment Type: T/T,L/C,D/P D/A;

    Language Spoken:English,Spanish,Chinese
