7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure

    Buy cheap 7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure from wholesalers

    Buy cheap 7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure from wholesalers
    • Buy cheap 7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure from wholesalers
    • Buy cheap 7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure from wholesalers
    • Buy cheap 7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure from wholesalers

    7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure

    Ask Lasest Price
    Brand Name : NOBO
    Model Number : NOBO-75P
    Certification : CE
    Price : Negotiable
    Delivery Time : 25
    Payment Terms : T/T, L/C
    Supply Ability : 2 Set/Sets per Month
    • Product Details
    • Company Profile

    7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure

    High Quality 7kg Glue Tank Bag Spring Viscose Machine with 0.6-0.7Mpa Air Pressure

    Bag Spring Viscose Machine with 0.6-0.7Mpa Air Pressure High Quality 7kg Glue Tank

    Product Description:

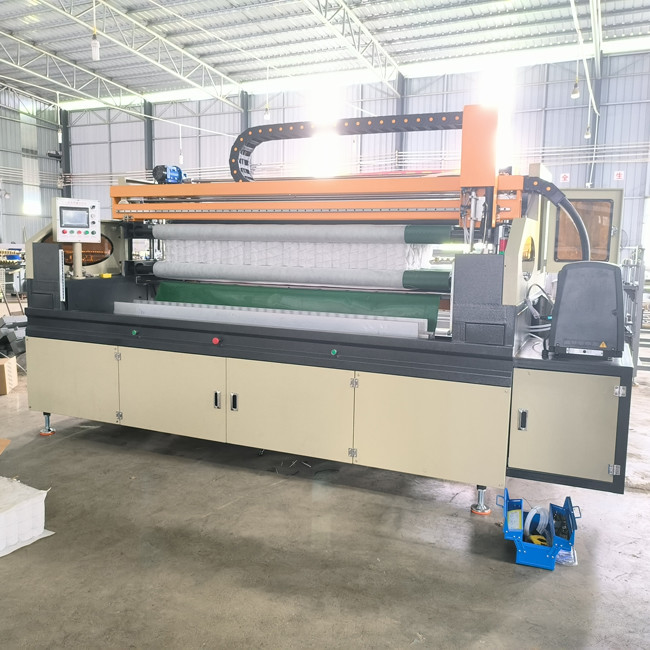

    Pocket Spring Assembly Machine

    This Automatic Spring Assembler is a high-speed Mattress Spring Assembly Machine that can output 5-6 Strings/min per hour. It is designed to work in a temperature range of +5C~+35C, with a frequency of 50/60 Hz. The size of the machine is 3500*2900*2200mm.

    This Pocket Spring Assembly Machine is a perfect choice for mattress spring assembly needs. It is a reliable equipment that can provide a great spring production efficiency and quality. It also features a low noise and dust-free operation.

    This Mattress Spring Assembly Machine is an ideal choice for mattress spring assembly. It is equipped with advanced technology to ensure a high-speed production process. It is also designed with a robust structure to ensure a long-lasting performance. With its reliable performance and high-speed output, this machine is the perfect choice for mattress spring assembly.

    Features:

    • Spring Assembly Machine: Automatic Spring Assembler, Mattress Pocket spring Assembly Machine
    • Production capacity: 5-6 Strings/min
    • Display: Touch Screen
    • Weight: 2600KG
    • Air Pressure: 0.6-0.7Mpa
    • Output: 30-36 Strings/h

    Applications:

    NOBO-75P Pocket Spring Assembly Machine is the ideal choice for mattress manufacturing. It is made by NOBO, a brand from Foshan, China, and it is certified by CE. It has a minimum order quantity of 1 set and the price range is from USD$22000.0-35000.0/Set. The delivery time is 25 days. It is packed in standard packing. Payment terms are T/T or L/C. The supply ability is 2 Sets per Month.

    This Pocket Spring Assembly Machine is a manual type with electronic control of the assembling platform and 7kg capacity of glue tank. It has a touch screen display to show the assembling process. It is suitable for mattress pocket spring assembling and gluing process.

    NOBO-75P Pocket Spring Assembly Machine is the perfect choice for mattress producers who need a reliable and efficient machine to produce pocket springs for mattresses. It is suitable for both small and large production lines. It is highly accurate and efficient, and it improves production efficiency and product quality.

    Technical Parameters:

    NamePocket Spring Assembly Machine
    Gluing methodContinuous Gluing Model Interrupted Gluing Mode
    Output30-36 Strings/h
    Frequency50/60 Hz
    Operation and ApplicationFeed The Pocket Spring Strings Manually
    Air Pressure0.6-0.7Mpa
    TypeManual
    Weight2600KG
    DisplayTouch Screen
    Production capacity5-6 Strings/min

    Pocket Spring Assembly Machine,masttress spring making machine, mattress pocket making machine,Bag Spring Viscose Machine

    7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure

    7kg Glue Tank Bag Spring Viscose Machine With 0.6-0.7Mpa Air Pressure

    Customization:

    Nobo NOBO-75P Pocket Spring Assembly Machine

    Brand Name: NOBO
    Model Number: NOBO-75P
    Place of Origin: Foshan, China
    Certification: CE
    Minimum Order Quantity: 1 Set
    Price: USD $22000.0-35000.0 / Set
    Packaging Details: Standard packing
    Delivery Time: 25 Days
    Payment Terms: T/T, L/C
    Supply Ability: 2 Set/Sets per Month
    Dimension: 3500*2900*2200mm
    Power consumption in total: 6.5KW
    Capacity of glue tank: 7kg
    Air Pressure: 0.6-0.7Mpa
    Display: Touch Screen

    Nobo NOBO-75P Pocket Spring Assembly Machine is a special mattress pocket spring gluing machine designed for mattress production. It is perfect for pocket spring production lines, as it is easy to operate and maintain. The glue tank capacity is up to 7kg, and the air pressure is 0.6-0.7Mpa. The total power consumption is 6.5KW, making it energy efficient. The dimension of the machine is 3500*2900*2200mm, and it is equipped with a touch screen for easy operation.

    Support and Services:

    For technical support and service for our Spring Assembly Machine, we provide the following:

    • Free telephone consultation for troubleshooting
    • Online tutorials and video instructions

    Packing and Shipping:

    The Spring Assembly Machine will be securely packaged and shipped in a wooden support, with a polystyrene insert to protect the product from any damage during transit. The box will be sealed with tape, and clearly labeled with the product name and shipping address.

    FAQ:

    Q1:What is the brand of the Spring Assembly Machine?
    A1:The brand of the Spring Assembly Machine is NOBO.

    Q2:What is the model number of the Spring Assembly Machine?
    A2:The model number of the Spring Assembly Machine is NOBO-75P.

    Q3:Where is the Spring Assembly Machine manufactured?
    A3:The Spring Assembly Machine is manufactured in Foshan, China.

    Q4:What is the minimum order quantity of the Spring Assembly Machine?
    A4:The minimum order quantity of the Spring Assembly Machine is 1 set.

    Q5:What is the price of the Spring Assembly Machine?
    A5:The price of the Spring Assembly Machine is USD $22000.0-35000.0 / Set.
