    380V Electrical PLC Motor Spring Assembly Machine 10000W

    Ask Lasest Price
    Brand Name : NOBO
    Model Number : ZC-4
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 2 Set/Sets per Month
    Delivery Time : 15-45 work days
    • Product Details
    • Company Profile

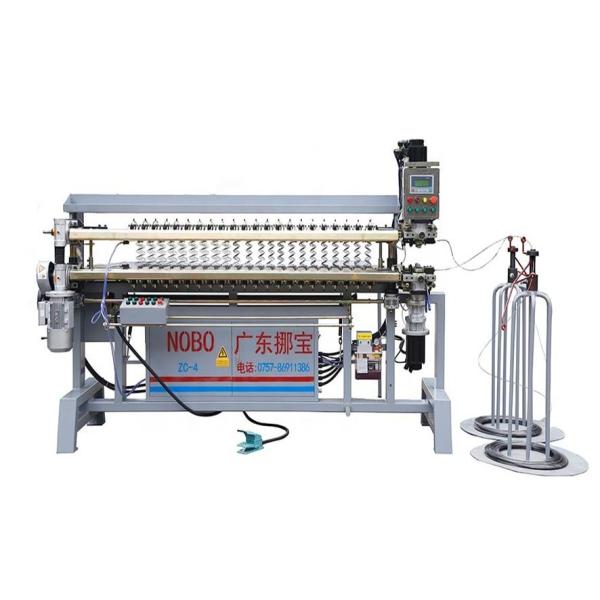

    380V Electrical PLC Motor Spring Assembly Machine 10000W

    Spring Assembling Machine for mattress Servo motor Assembling machine assemble the spring mattress


    NOBO-ZC-4 is the specialized assembly equipment of spring bed nets and seat which needs only one person to put on the expected spring so that can achieve up and down at the same time network series.

    Technical data:

    Work Efficiency:50-80 units/8 hoursMaximum width of the bed nets:2000mm(option2000mm)
    Adaption bed nets high:80-180mmSpring wire diameter:2.0-2.4mm
    String of spring steel wire diameter:1.3-1.6mmThe total electric power:4.5KW
    Weight of machines:950kgElectrical source:3 phase 380V/50HZ
    Figure size:length 3150 x width1730 x high1810mm
    Applies to spring-caliber:

    58 Fixture Series 55-56mm

    68 Fixture Series 65-70mm

    78 Fixture Series 65-73mm

    88 Fixture Series 75-82mm

    98 Fixture Series 82-90mm
