4-7Turns Digital Bonnell Spring Coiling Machine 4KVA Mattress Production Line

Ask Lasest Price
Brand Name :	NoBo
Model Number :	NOBO-GH-80
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	2 Set/Sets per Month
Delivery Time :	15-45 work days

Add to Cart

Product Details
Company Profile

4-7Turns Digital Bonnell Spring Coiling Machine 4KVA Mattress Production Line

Digital Bonell Spring Coiling Mattress Machine Spring Mattress Production Line

Product Application

Fully Automatic Bonnell Inner Spring Units Production Line is latest model for producing mattresses innerspring units.

It can produce innerspring units directly from wire. Firstly the steel wire is coiled to a spring, and then transferred and inserted to the assembler by the automatic feeding system. After this, the upper and lower springs are coiled together at the same time and helical wire is coiled, cut and clamped at both ends automatically. When a unit is finished, it could be ejected automatically.
Every system of the production line was managed by the automatic numerical control system, So it is high automatic operation and more safer, saved the man power, reduce the work intension, so the result is upgrade the work efficiency. Both the electrical parts and the structure of the machine are up to the CE. so that it is more safe and user-friendly.

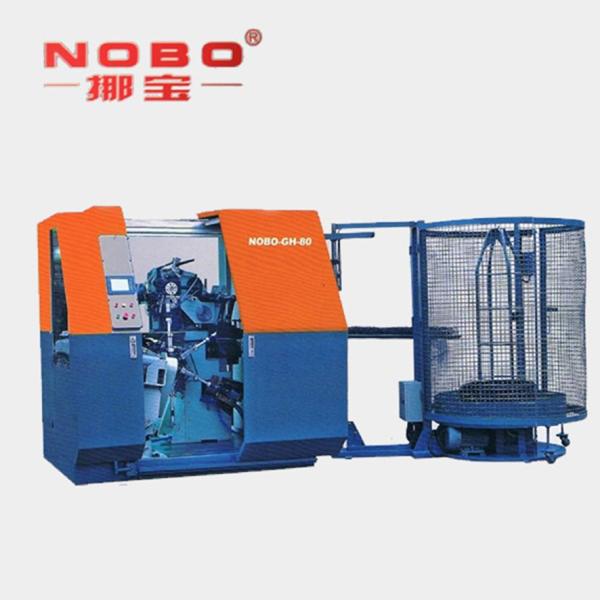

The STATE-OF-THE-ART DIGITAL SPRING COILING MACHINE produces Bonell springs for mattress to a spring,

knotted at both ends, heat treated and to be collected to an outlet channel. The coiler utilizes a fully integrated

computerized Programmable Logic Controller(PLC)and Servo control system, also with two CPU and high sensitivity

touch screen to reach remote-control support. All machine functions include wire feeding length, heat treatment,

lubrication and self-protecting are automatically controlled.

NOBO-GH-80S(DIGTAL MATTRESS SPRING COILING MACHINE)
Spring Type:	Bone11	Capacity:	80 PCS/MIN
Spring End Ring:	62-75MM,75-95MM	Steel Wire Gauge:	1.8-2.4MM
Spring Height:	80-190MM(Option:190-210MM)	Convolutions:	4-7Turns
Main Drive Power:	4KVA	Swift Frame Power:	2.2KVA
Heat Treatment:	10KVA	Weight: NET Approx:	2730KG
Power Requirement:	380V,3 Phase,50-60HZ(Option:415V-480V,220V)

Main business:
Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

mattress spring making machine , Tape edge machine , Packing machine

4-7Turns Digital Bonnell Spring Coiling Machine 4KVA Mattress Production Line

Ce certificate: Spring Makiing Machine & String Spring Machine

4-7Turns Digital Bonnell Spring Coiling Machine 4KVA Mattress Production Line

Package&Shipping:

You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

of your chosen port anywhere in the world timely. All of our produrts are well packed to ensure the safety

of the products.

Packaging
Size	(L) * (W) * (D)mm
Weight	*kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

4-7Turns Digital Bonnell Spring Coiling Machine 4KVA Mattress Production Line
