CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

Ask Lasest Price
Brand Name :	NOBO
Model Number :	LN-120
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	2 Set/Sets per Month
Delivery Time :	15-45 work days

Add to Cart

Product Details
Company Profile

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

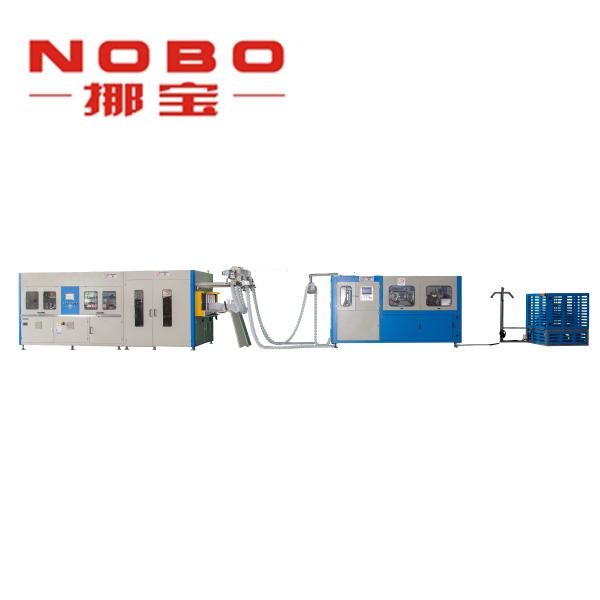

Mattress Packing Pocket Spring Machine Production Line

LN-120 latest model for producing "Bonell" type innerspring units. It can produce innerspring units

directly from wire.Firstly the steel wire is coiled to a spring, and then transferred and inserted to the

assembler by the automatic feeding system.After this,the upper and lower springs are coiled together

at the same time and helical wire is coiled, cut and clamped at bothend automatically. When a unit is

finished, it could be ejected automatically.

Electronic control automatic glue pocket spring assembly machine

1. Adopt Plc Program Control And Full Touch Screen Operation.

2. Suitable For Assembling Spring Rows To Be Mattress.

3. Equip With Imported Glue Tank, Adopt Servo Control System For Pushing Feeding Spring Rows Accurately And Fast

4. Available For Upper And
Lower Non-Woven Gluing, Automatic Cutting, Continuous Or Intermittent Spraying, Easy To Operate, High Degree Automation, Saving
The Glue And Reducing The Costs .

5. Capacity Can Reach 15-20 Rows Pocket Springs Per Minute

LN-120			Consumption Material Data
Production capacity	120springs/min.		Non-woven fabric
Coiling head	One servo coiling head	Double wires coiling head	Fabric density		65～90g/m²
Working principle	Servo control		Fabric width		360-600mm
Spring shape	Standard versions: barrel and cylindrical		Inner dia. of fabric roll		Min. 75mm
Air consumption	Approx. 0.25m³/min.		Outer dia. of fabric roll		Max. 1000mm
Air pressure	0.6-0.7 mpa		Steel wire
Power consumption in total	Approx. 38KW	Approx. 43KW	Wire diameter		1.3-2.3mm
Voltage	3AC 380V		Inner dia. of wire roll		Min. 320mm
Frequency	50/60 Hz		Outer dia. of wire roll	Max. 1000mm
Input current	55A	65A	Acceptable weight of wire roll	Max. 600kg
Cable section	316mm² + 210mm²		1. Fast And Stable, Production Output: 120 Springs/Min. Low Failure Rate 2. Online Settings And After Sales Service Chief Engineer. Can Be Remote Access Contact User Permission Line Mechanical.
Working temperature	+5°C～+35°C
Weight	Approx. 3600KG	Approx. 3800KG
Size	900017002200mm	90003A2002200mm

Electronic control automatic glue pocket spring assembly machine

Production capacity	10-14 strings/min
Capacity of glue tank	15kg/18kg/30kg
Gluing method	Continuous gluing mode/interrupted gluing mode
Control of assembling platform	Electronic control
Possibility of assembling zoned tape	Possible
Possibility of assembling zoning mattress	Possible
Air consumption	0.3 m³/min
Air pressure	0.6-0.7 mpa
Power consumption in total	15KW
Voltage	3AC 380V

NOBO(mattress) machinery co.,ltd

Company Profile

NOBO(mattress) machinery co.,ltd, was founded in 2007, at the beginning of the establishment is a

professional commitment to mattress machinery research and development, design, manufacturing,

sales and service of high-tech enterprises.

For many years the development of the NOBO mattress machinery company has become a

"mattress equipment" industry perfect production chain and sales service system of professional

manufacturers, the company has excellent sales team and technology development team, Listen

to the voice of the customer ,for customer service and customer Creating value is our eternal pursuit.

Business philosophy:

Quality first, customers pay back the community.

Quality guidelines: Customer-oriented quality Innovation and continuous improvement The quality

of services, ahead of the competition Full participation and achievement of objectives

Quality Objectives: To ensure product quality and credibility. To strengthen the competitiveness.

Customer demand to provide better products, so

that the customer satisfaction. Customer requirements for the goal to achieve quality in the first.

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

Main business:
Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

mattress spring making machine , Tape edge machine , Packing machine

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

Ce certificate: Spring Makiing Machine & String Spring Machine

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

Package&Shipping:

You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

of your chosen port anywhere in the world timely. All of our produrts are well packed to ensure the safety

of the products.

Packaging
Size	(L) * (W) * (D)mm
Weight	*kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

Delivery:
Payment:	30% by T/T as down payment before production, and the rest 70% by T/T as balance payment before shipment.
Time of Delivery:	Within 20 days after receiving the buyer’s down payment.
Warranty:	The seller provides one year warranty of the main machine starting from the moment the buyer signs the acceptance certificate. For the wearing parts, consumption of materials and the damage incurred by the Buyer's incorrect operation are out of the warranty range.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

FAQ:

1. who are we?

We are based in Guangdong, China, start from 2013,sell to Northern Europe(10.00%),Eastern Asia(10.00%),

Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),

North America(10.00%),South Asia(5.00%),Southern Europe(5.00%),Western Europe(5.00%),Central

America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Automatic bunch of spring machine,Bonnell spring coiling machine,Mattress Border Frame Wire Bending,

Automatic Coiler Machine,Automatic side seamer of the bed cushion

4. why should you buy from us not from other suppliers?

We have 7 years production experience for mattress machine. In order to meet the market demand customer

need in accordance with special requirements of custom-made mattress production facilities.

5. what services can we provide?

Accepted Delivery Terms: FOB；

Accepted Payment Currency:USD;

Accepted Payment Type: T/T,L/C,D/P D/A;

Language Spoken:English,Spanish,Chinese

Product Tags:

CE Mattress Packing Pocket Spring Machine

120 Springs/Min Pocket Spring Machine

barrel cylindrical pocket spring mattress machine

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line
